OCR Burned-in Subtitle (Video OCR)
Extract hardcoded (burned-in) subtitles from a video into editable text lines using OCR.
- Menu: Video → OCR burned-in subtitle…

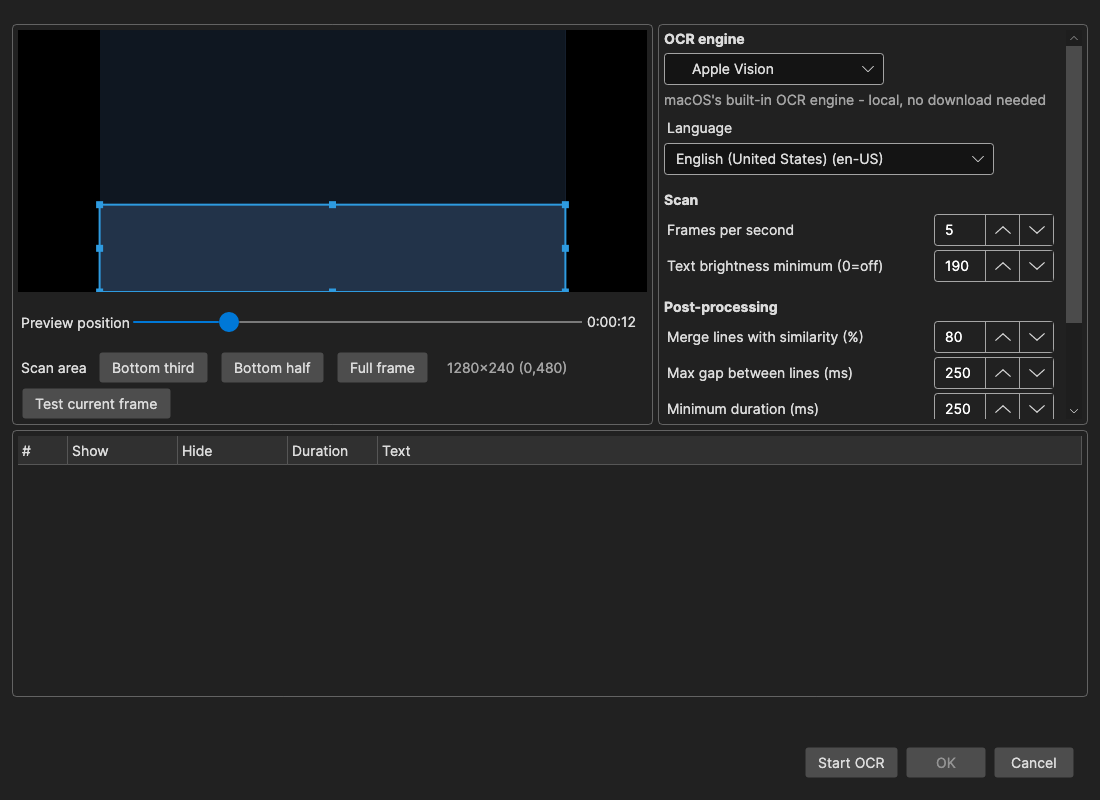

How to Use
- Open Video → OCR burned-in subtitle… (a video file is required)
- Use the preview slider to find a frame that shows a subtitle
- Adjust the scan area rectangle so it covers where the subtitles appear (default: bottom third) — drag to move/resize, or use the preset buttons
- Pick an OCR engine and language (for Ollama and llama.cpp, also pick a vision model)
- Optionally click Test OCR to try the current frame before running the full pass
- Click Start OCR — lines appear in the list as they are recognized
- Click OK to load the result into the main window
The recognized text is editable directly in the list, so OCR mistakes can be fixed in place. Double-click a line to show the frame it came from in the preview, and press Delete to remove selected lines.
OCR Engines
- Paddle OCR — local, fast and accurate; downloaded automatically (Windows/Linux). Recommended.
- Paddle OCR Python — local, via a Python
paddleocr installation (also works on macOS)
- Ollama vision — local vision model via Ollama, e.g.
glm-ocr
- llama.cpp — local vision model via a managed llama.cpp server; the engine and models are downloaded automatically. Available models: GLM-OCR 0.9B, LightOnOCR 1B, and PaddleOCR-VL 1.6 (109 languages). A green dot marks models that are already downloaded; custom
*.gguf files in the llama.cpp models folder also appear.
- GLM API — GLM vision model via the Z.ai / bigmodel.cn cloud API (requires an API key)
How It Works
Frames are sampled from the scan area at a few frames per second with ffmpeg. Consecutive
near-identical frames are collapsed so each on-screen subtitle is OCR’ed only once, then
consecutive OCR results with near-identical text are merged into one line with correct start/end
times (the text variant shown the longest wins).
Settings
- Frames per second — how many frames per second to sample (higher = more precise timing, slower)
- Text brightness minimum — pixels darker than this are ignored when comparing frames, so the
comparison follows the (bright) subtitle text instead of the moving video behind it; frames with
no bright pixels are skipped entirely. Set to 0 to disable (e.g. for dark subtitle text).
- Merge lines with similarity (%) — how similar the text of two consecutive OCR results must be to merge into one line
- Max gap between lines (ms) — maximum time gap allowed when merging
- Minimum duration (ms) — lines shorter than this are dropped (removes OCR blips/false positives)
- Add ASSA position tag — prepend an alignment tag (e.g.
{\an8} for a top scan area) based on
the scan area position, for Advanced Sub Station Alpha output
Tips
- Scan only the region where subtitles actually appear — a smaller area is faster and has fewer false positives
- For subtitles at the top of the frame (e.g. sign translations), move the scan area up and enable the ASSA position tag
- If lines are duplicated with small OCR differences, raise Merge lines with similarity tolerance by lowering the percentage
- If short random text blips appear, raise Minimum duration
